1-6125-01 ［Discontinued］Overtemperature Control Device TL-400
Product Description
Product Model: 1-6125-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-6125-01
Product Brand: AS ONE Corporation
Features
- If temperature becomes high from preset temperature, even if power supply will be cut automatically and temperature will fall from preset value, power supply does not return.
- Max. of 1500W （at the time of resistance load） of load capacity is connectable.
- Various K thermo couples （terminal specification） of option can also be ***d.
Spec
- Model number: TL-400
- Settings range: 0 - 400℃
- Minimum display unit: 1℃
- Temperature display precision: +/-0.3% (FS) +/- 1 digit or 3℃, whichever is larger
- Temperature setting system: Sheet key touch system, PV/SV digital 2 stages display
- Alarm description: When rising more than settings temperature, PV display flashes and internal relay is OFF (reset returns by reclosing body power switch)
- Output terminal: 3P outlet, M4 screw terminal
- Connection capacity: MAX 15A (resistance load)
- Power supply: 100VAC 50/60Hz
- Main unit size: 135 x 110 x 82mm
- Accessories: K class thermocouple (including in the body) round terminal specification (cable length 1.9m)
Related product recommendations
You may also be interested in the following products
toner
61-0104-44-20 testo 622 High Precision tabletop temperature, Humidity and Barometer with Calibration Certificate 05606220
model: 61-0104-44-20
brand: Testo K. K.
toner

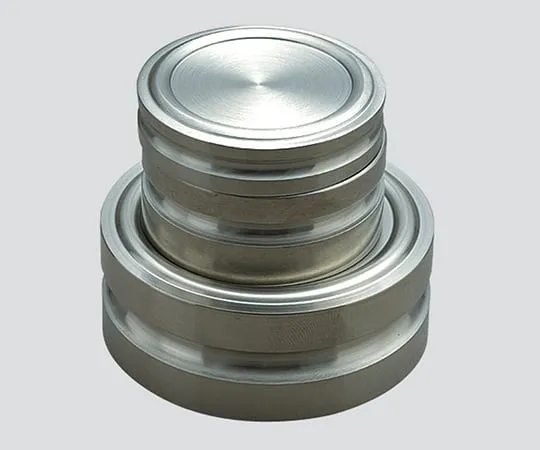

3-6244-11 Disk Weight 10G Class F1 Grade with JCSS Calibration (Special Grade) F1DS-10G-JCSS1
