1-5826-11-20 ［Discontinued］Digital Temperature Controller (With Timer Function) -100 - 600 ℃ With Calibration Certificate TC-1NK
Product Description
Product Model: 1-5826-11-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-5826-11-20
Product Brand: AS ONE Corporation
Features
- Temperature control is an ON/OFF control method.
- As for the temperature display, the PV/SV two-stage display is adopted so that the measured value and the set value can be seen at a glance to prevent setting errors.
- Four timer functions (OFF, ON, ON/OFF and SET) are standard.
- Forward/reverse operation switching is possible.
- It is equipped with circuit protector, alarm output function and sensor malfunction detection function.
Spec
- Model number: TC -1 NK
- Set temperature: 100 to 600 ℃
- Minimum display unit: 1 ℃
- Temperature display accuracy: ±0.5% (FS) ±1 digit or 3 ℃, whichever is larger
- Temperature control method: ON/OFF control
- Temperature setting display: Sheet key touch system, PV/SV digital two-stage display
- Sensor type: K class thermocouple (φ4 x 200mm)
- Connected capacity: AC100V 50/60Hz MAX 12 A (resistance load) * Do not connect inductive load devices (Motor, pumps, etc.) directly to the tester.
- Additional function: timer function/setting range: 1 minute to 99 hours 59 minutes
- Safety function: Circuit protector (15 A), alarm output function, sensor abnormality detection
- Power supply : AC100V 50/60Hz
- Main unit size: 95 x 150.6 x 48.5mm (excluding projections)
Related product recommendations
You may also be interested in the following products
toner
64-7270-88 Pressure Gauge with Glycerin Pressure Range (MPa): 0.0~7.00 GV50-123-7.0MP
model: 64-7270-88
brand: NAGANO KEIKI Co., Ltd.
toner
63-3249-65 ［Discontinued］Infrared rays Thermography (Visible camera Adapted ) EA701ZC-11
model: 63-3249-65
brand: ESCO Company Ltd.
toner
65-4278-57-20 Normal Pressure Gauge (Φ75) Vertical A Frame for Vibration Resistance with 1.6 MPa Inspection Certificate AC20-181
model: 65-4278-57-20
brand: NAGANO KEIKI Co., Ltd.
toner

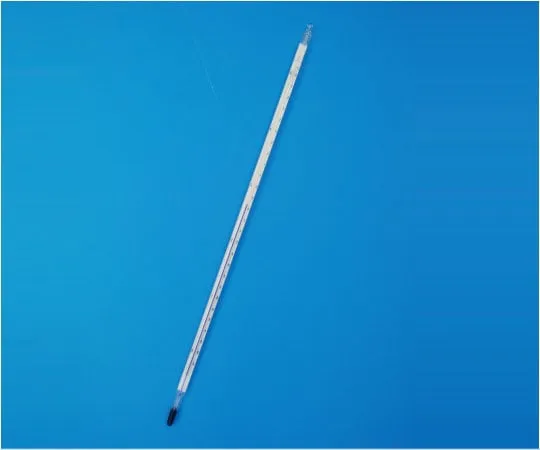

64-0702-50 Mercury-Free Rod Standard Thermometer -10 ~ 50 °C (0.1) Inspection Results Written 1-NM-31-VC
