1-5238-11 ［Discontinued］Digital Pearl Thermo DP-3A
Product Description
Product Model: 1-5238-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5238-11
Product Brand: AS ONE Corporation
Features
- This product incorporates circuit protector.
- This product can be changed over between normal operation and reverse operation, and is applicable to temperature control of not only heating equipment such as heater but also the cooling equipment.
Spec
- Model number: DP-3A
- Temperature settings range: 0 - 200℃
- Minimum display unit: 1℃
- Display: +/-3℃ (including sensor error) (external lead wire is required)
- Control system: ON/OFF control
- Temperature sensor: Pt100Ω φ4 x 200mm cable length 2m
- Output system: Voltage output by relay contact, from body side 3P outlet
- Output rating: 100VAC 50/60Hz MAX12A (resistance load)
- Safety mechanism 15A capacity circuit breaker, burnout circuit at sensor disconnected
- Data output: 4 - 20mA (-10 - 240℃ fixed) analog output
- Size: 95 x 150 x 47mm (excluding projections)
- Power cord length: 2.0m (3P plug) *Do not connect induction load equipment (motors, pumps, etc.) directly to this device.
Related product recommendations
You may also be interested in the following products
toner

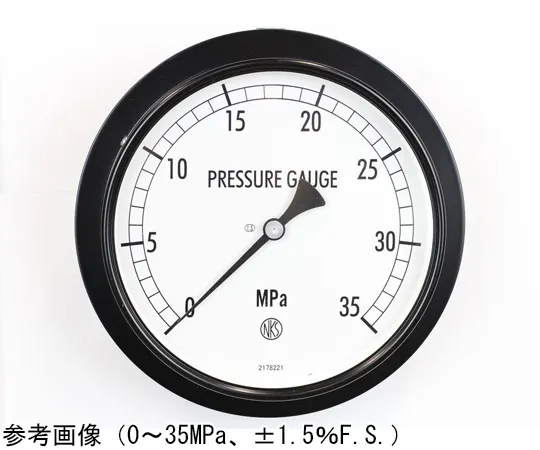

65-4291-36-20 Normal Pressure Gauge (Φ150) Embedded D Frame (Mounting Bracket) with 0.25 MPa Inspection Certificate AG15-141
model: 65-4291-36-20
brand: NAGANO KEIKI Co., Ltd.
toner

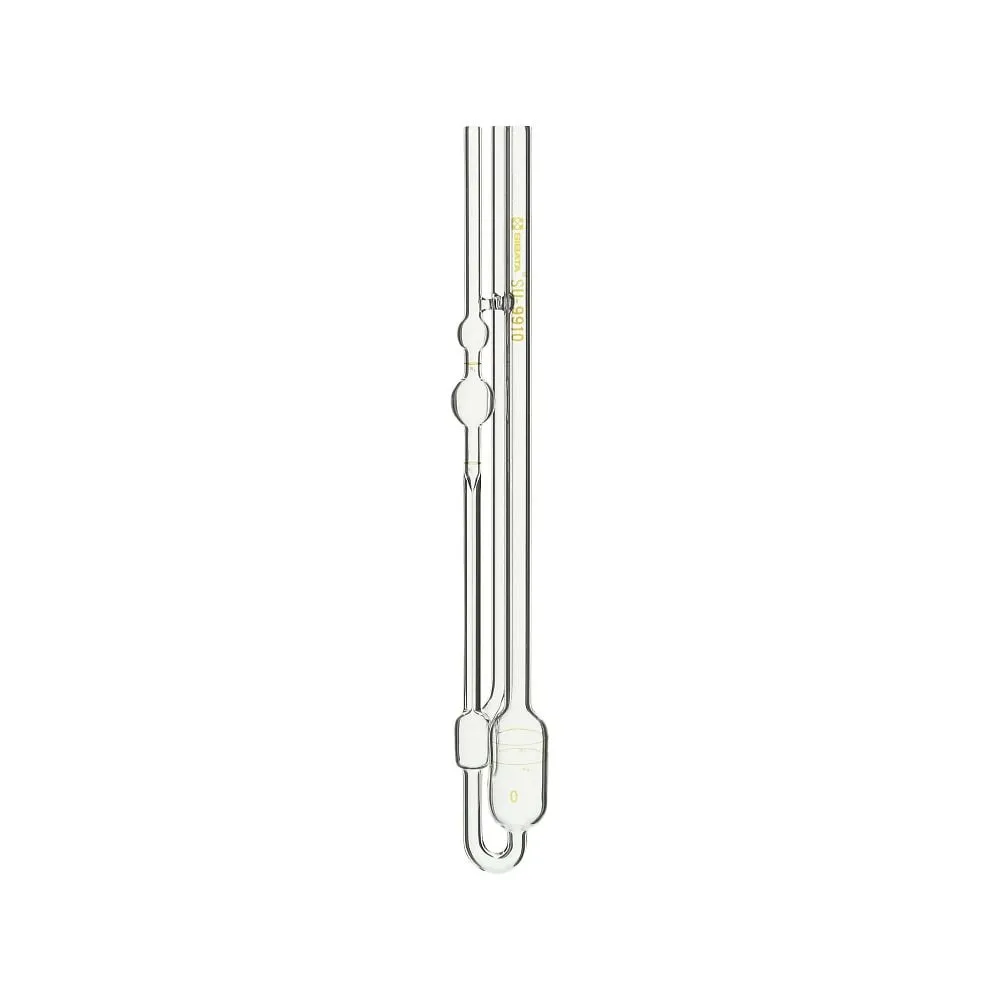

61-4415-56 Viscometer Ubellohde SU No.0 026130-0001
model: 61-4415-56
brand: SIBATA SCIENTIFIC TECHNOLOGY LTD.
toner

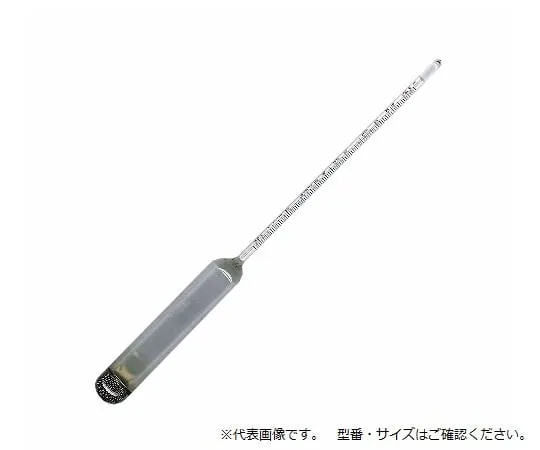

61-0015-60 Standard Hydrometers Large No.1 With Traceability Chart (1 Piece) JC-9191
model: 61-0015-60
brand: Nihon Keiryoki Kogyo
toner

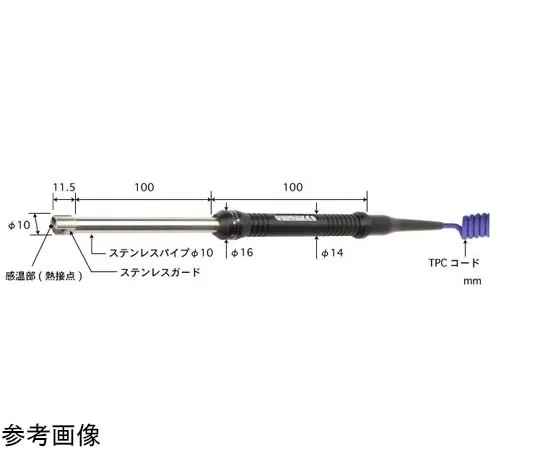

65-3528-77 High Performance Temperature Sensor for General Static Surfaces S-Type Series -50~800°C High Temperature Type 10φ Straight Type E S-321E-01-1-TPC1-ASP
