1-4598-11-56 ［Discontinued］Digital Temperature Excess Temperature Rise Prevention System with English Calibration Certificate OP-1000A
Product Description
Product Model: 1-4598-11-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4598-11-56
Product Brand: AS ONE Corporation
Features
- Power is automatically turned off when the temperature exceeds the set temperature (power is turned on again for reset).
- Uses a jog dial system for quick and reliable temperature setting.
- The display screen is a backlit liquid crystal screen with excellent visibility and displays both the set temperature and the measured temperature simultaneously.
Spec
- Setting range (deg. C): - 20.0 ~ 500.0
- Minimum Display Units (deg. C): 0.1
- Temperature display accuracy: +/- 2.6 degrees C
- Sensor: K thermocouple
- Capacity: 100 VmAX 12 A AC
- Safety device: Sensor malfunction detection, circuit protector
- Temperature setting method: LCD digital display (simultaneous display of setting and measuring temperature)
- Additional Features: Setting Memory Keylock
- Power supply: 100 VAC 50/60 Hz
- Size: 147 x 150 x 106 mm
- Accessory: K Thermocouple x 1
- K thermocouple: sheath phi 3.2 x approx. 190 mm, cord approx. 2 m
- *If the temperature drops after the power supply is cut due to overheating, it will not be restored.
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
Related product recommendations
You may also be interested in the following products
toner
61-0104-71 ［Discontinued］testo330-1Ll Combustion Exhaust Gas Analyzer (O2,CO) 6323306
model: 61-0104-71
brand: Testo K. K.
toner
toner

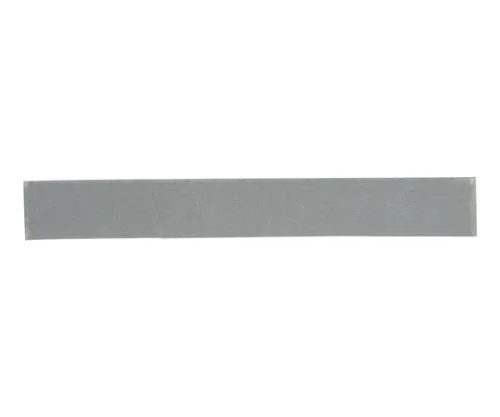

61-0105-37 Reflection Seal for Revolution Indicator 5540493
model: 61-0105-37
brand: Testo K. K.
toner

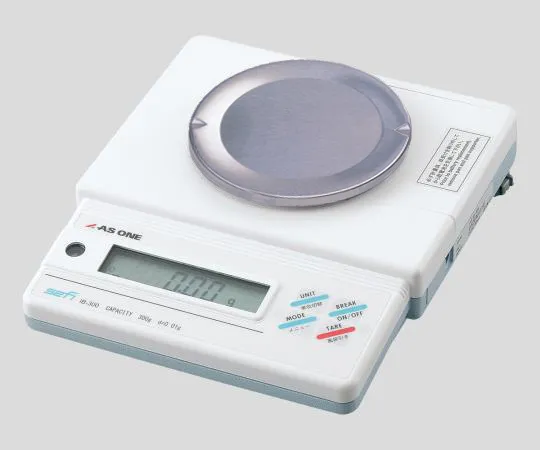

1-5164-11-56 ［Discontinued］Electronic Balance (sefi) with English Calibration Certificate IB-300
