61-3236-69 ［Discontinued］Small Box Furnace (Program Control) 1500℃ Series KBF333N1
Product Description
Product Model: 61-3236-69Product Brand: Koyo Thermo Sys […]
Contact Us
Product Details
Product Model: 61-3236-69
Product Brand: Koyo Thermo Systems Co., Ltd.
Features
- With a heater mounting structure on the back of the furnace, shell loss is reduced and maintainability is improved.
- An overheat prevention meter and a door opening/closing limit switch (When the door is open, the heater is turned off.) are provided as standard.
- High performance insulation and compact design provide good response to temperature rise.
Spec
- Effective inner dimension (mm) width x depth x height: 150 x 305 x 120
- Internal capacity (L): 5.5
- Power (V): Single-phase 200 60A
- Heater output (kW): 7.2
- Body dimension (mm) width x depth x height: 600 x 760 x 950
- Mass (kg): 135
- Regular operating temperature range: 600 - 1450℃ (2 patterns)
- Maximum operating temperature: 1500℃
- Production country: Japan
- Weight: 135kg
- Set content: Furnace setter plate (Mullite series), Power cable 3m (Terminal stopper without plugs)
- Manufacturer's model number: KBF333N1
- Code number: 458-6549
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
4-578-01 Reduction Conversion Piece NW16/25 Type RP16-25
model: 4-578-01
brand: AS ONE Corporation
laboratoryinstruments
3-8002-01 ［Discontinued］Electronically Controlled Stirrer (Maximum Torque 7.5 N・cm) Microstar7.5control
model: 3-8002-01
brand: IKA
laboratoryinstruments
62-7024-17 QSP Filter tip 1000uL F116-R100S-1000-Q
model: 62-7024-17
brand: QSP(Thermo Fisher Scientific)
laboratoryinstruments

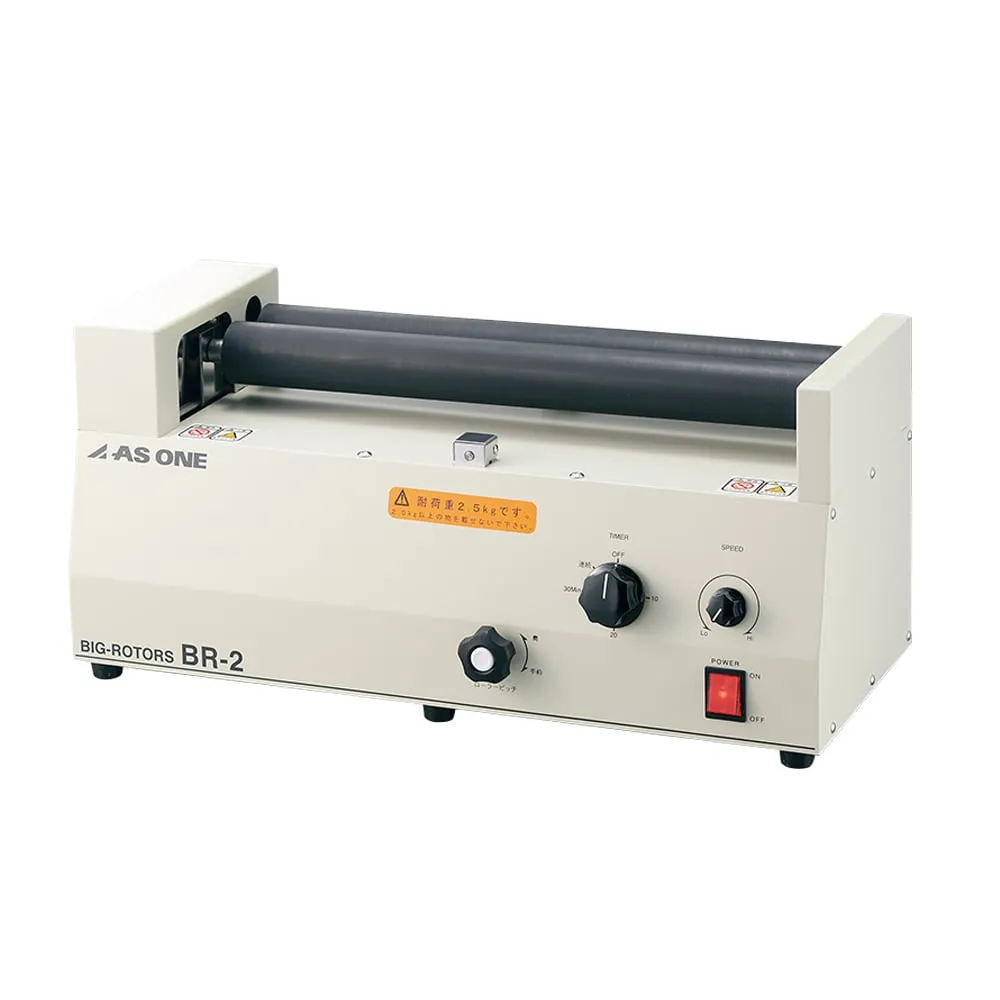

1-5174-01-22 Big Rotor With Pre-Shipment Inspection Certificate BR-2
