69-3902-95 φ60 Pressure Gauge JIS Compatible Regular Pressure Gauge AA10 Corrosion-Resistant SUS G1/4B T Stock A Frame AA10-123-0.1-0.16MPA
Product Description
Product Model: 69-3902-95Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 69-3902-95
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- Compatible with JIS B 7505-1:2007 Bourdon tube pressure gauge.
- A pressure gauge with a structure that transmits the elastic deformation (movement) of Bourdon tube pressure to the needle. The simple structure makes handling easy.
- It can measure in a wide pressure range and is ***d in a wide range of fields.
- Standard conformity certification (type approval) is possible.
- The pressure setting range is wide and corrosion resistance is required.
Spec
- Type: Normal pressure gauge
- Size: φ60
- Type: Coupled meter (Coupled pressure)
- Pressure range: -0.1~0.16 MPa
- models: vertical
- Shape: A Frame
- Connecting Screws: G1/4B T Strand
- Application: Made of corrosion-resistant SUS
Related product recommendations
You may also be interested in the following products
toner

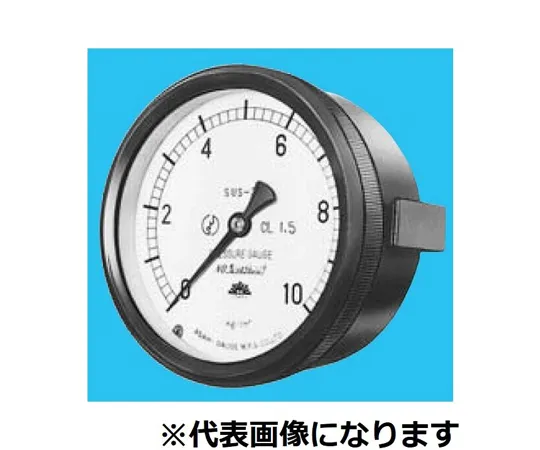

65-3509-49 Sealed Pressure Gauge Type D Vibration-Resistant Pressure Range (MPA): 0~0.05 315-D450X0.05MPA-MV
