69-3848-82 Hot Ionization Gauge PBR260 DN25 ISO-KF IGG27000
Product Description
Product Model: 69-3848-82Product Brand: INFICON Feature […]
Contact Us
Product Details
Product Model: 69-3848-82
Product Brand: INFICON
Features
- BA Ion-Pirani combined vacuum gauge
- Allows measurement of a wide range of pressure regions
- The BA ion gauge is automatically turned on and off.
- Piranha interlock reduces filament disconnection when the atmosphere is suddenly opened
- Sensor unit replaceable
- RoHS Compliance (as of October 2024)
- Compatible with Pfeiffer PBR360 (PTR27000)
Spec
- Measured Output Range: 100,000~5 x 10-8 Pa
- Recomm***ed measurement area: 10,000~1 x 10-6 Pa
- Accuracy of measurement: ±15% (1~1 x 10-6 Pa)
- Filament Material: Oxidized yttria coated iridium
- BA Filament: 2
- Connecting Flange: DN25 ISO-KF
- cable connectors: Hirschmann 6-pin
- Operating ambient temperature: 0~50°C
- Size: 67 x 58 x 155 mm
- Weight: 285 g
- Product Warranty: 1 year from date of shipment
Related product recommendations
You may also be interested in the following products
toner
toner
61-8503-59 Continuous Weighted Type Scratch Intensity Test Machine Type: 18 TYPE18
model: 61-8503-59
brand: HEIDON
toner
1-5653-13 ［Discontinued］Cable for Oxygen Concentration Alarm Indicator 30m 6H30
model: 1-5653-13
brand: GASTEC Corporation
toner

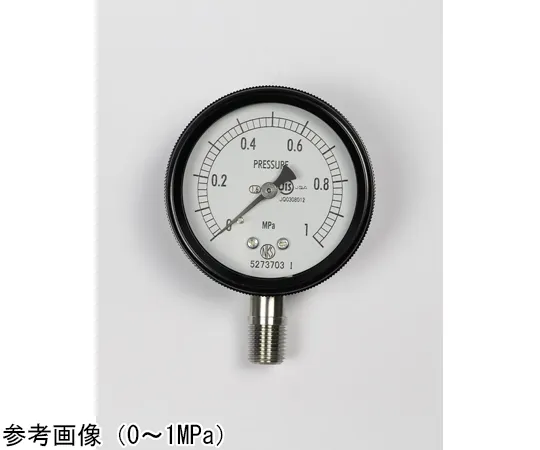

65-4293-19-20 Sealed Pressure Gauge (60Φ) Vertical A Frame with 0.16 MPa Inspection Certificate BA10-173
