68-0842-65 UST All Stainless Steel Pressure Gauge 0.05MPA 100 φR 3/8 UST-DUR38-100X0.05MPA
Product Description
Product Model: 68-0842-65Product Brand: Daiichi Keiki M […]
Contact Us
Product Details
Product Model: 68-0842-65
Product Brand: Daiichi Keiki Mfg
Features
- Not only the wetted part (Screw Portion, Bourdon Pipe), but also the case, scale plate, needle, screw, and all other parts (Excluding glass and terashi) are made of stainless steel, giving it excellent corrosion resistance.
- In particular, even in a corrosive atmosphere, not only the case but also the scale plate, needle, etc. can be kept in a clean condition without rusting.
Spec
- Type: Framed/Pressure Introduction Port Back Type
- Wetted Part Material: SUS316
- Case Material: SUS304
- Accuracy: ±1.6% F.S
- Pressure span (MPA): 0.05
- Size (φ): 100
- Connecting Screw: R3/8
- Type: Pressure gauge
Related product recommendations
You may also be interested in the following products
toner

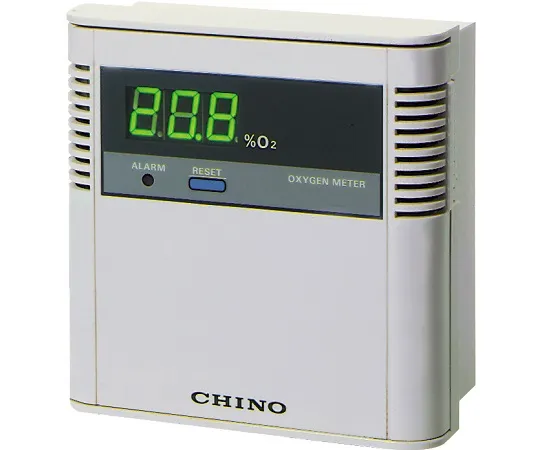

67-4915-72 Mg3010Series 1 Point Measurement Monitor (Reception: 0~10 Mv, Anoxic Meter Mode I, Indication: 0.0~25.0%O2) MG3011-00
model: 67-4915-72
brand: CHINO CORPORATION
toner
2-7235-01 ［Discontinued］Pocket Seasoning Concentration Meter PAL-97S
model: 2-7235-01
brand: ATAGO CO., LTD.
toner

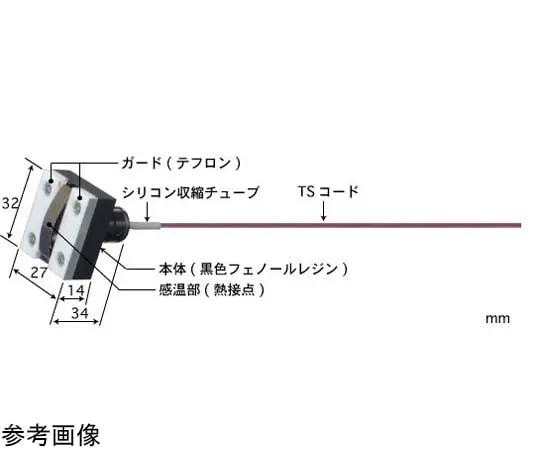

65-3528-47 Magnet Built-in Temperature Sensor MG Series -50~250°C Type E Head Shape: Type 11 MG-11E-TS1-ASP
model: 65-3528-47
brand: ANRITSU METER CO., LTD.
toner

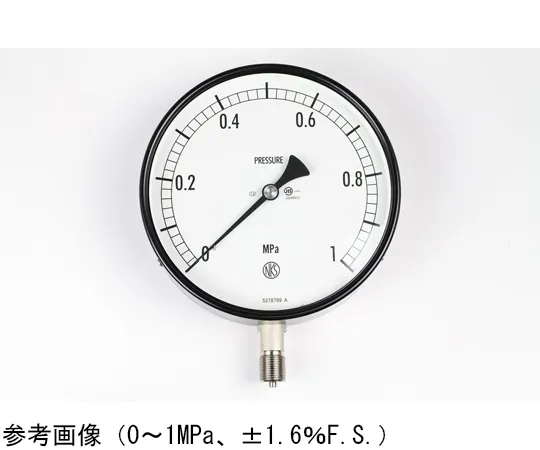

65-4290-20-20 Normal Pressure Gauge (Φ150) Vertical A Frame with 0.1 MPa Inspection Certificate AG10-133
