68-0807-25 Desktop Tensile Compression Testing Machine [Forth Tester] (Tensile Jig Set) MCT-1150-T2
Product Description
Product Model: 68-0807-25Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 68-0807-25
Product Brand: A&D
Features
- I see strength! Tensile jig set for general purpose tabletop tensile compression testing machine.
- Comes with parallel fastening mold jaw (JM-JFM-500 N x 2 pcs) for tensile test.
- Color touch panel provides good visibility and easy operation.
- It comes with a high-precision load cell, and you can *** it as soon as you turn on the power.
- Test speed can be easily set digitally.
- Displacement display is provided as standard.
- Comes standard with PC installation software.
- The jig (attachment) ***d in the force gauge and push-pull gauge can also be ***d. *M6 screws are ***d when using the M6 onesideadapter.
- It is connected to the mini printer AD-8126 (sold separately), and the maximum load and displacement can be printed out.
- Space-saving design that can be ***d on a desk.
- A force measuring machine that replaces the force gauge and push-pull gauge.
- Can handle a variety of material tests.
Spec
- Accessory Jig: Parallel Fastening Type Jaw for Tensile Test (Opening Width: 10 mm) Top and Bottom
- Maximum testing capacity: 500 N
- Crosshead stroke: 400 mm
- Effective stroke (when using standard parallel clamp jaw): 315 mm
- Crosshead speed range: 10~300 mm/min/within ±5% of the set value (unloaded)
- Crosshead speed and test force capacity: The maximum test force capacity can be tested over the entire speed range.
- Displacement indicator: 0.0 mm (minimum 0.1 mm)
- Test force measurement accuracy (when using a 500 N load cell): ±0.2% F.S
- Test force display resolution (when using a 500 N load cell): 0.1 N
- Supplied Software: MCT-Logger
- Power: 90~240 VAC 1Φ 50/60Hz
- Body Dimensions: 250 (W) x 408 (D) x 711 (H) mm
- Mass: 17 kg
- Accessories: Owner's Manual, Load Cell for 500 N, Software for PC (CD-ROM), USB Cable, Parallel Fastener Jaw (JM-JFM-500 N) x 2
Related product recommendations
You may also be interested in the following products
toner

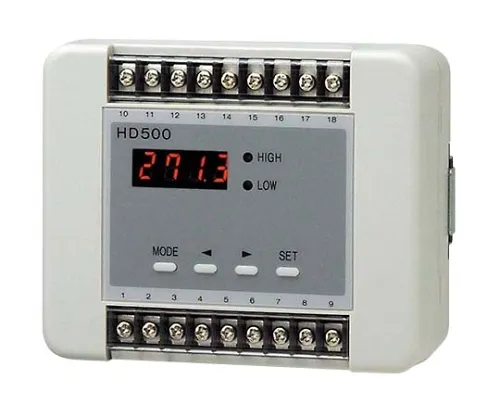

61-0173-78 ［Discontinued］Ultrasonic Air Level Meter HD500-C
model: 61-0173-78
brand: Honda Electronics Co., Ltd.
toner
toner
63-3260-13 ［Discontinued］Conductivity Meter (Tds) (For Ground ) EA776BC-21
model: 63-3260-13
brand: ESCO Company Ltd.
toner

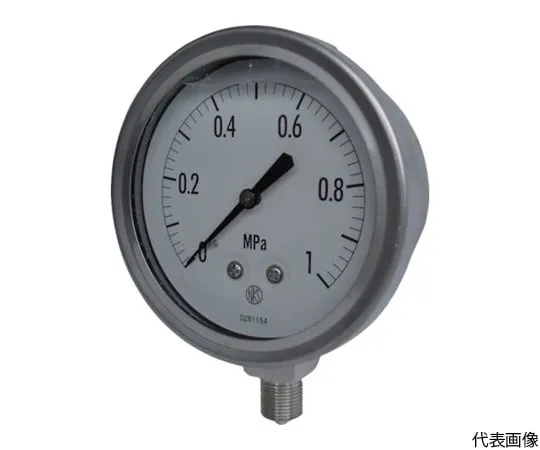

64-7270-74 Pressure Gauge with Glycerin Pressure Range (MPa): 0.0~10.00 GV42-133-10.0MP
