67-5567-36 Magnet Sensor (Thermocouple) C400-01 C400-011YCJ020
Product Description
Product Model: 67-5567-36Product Brand: CHINO CORPORATI […]
Contact Us
Product Details
Product Model: 67-5567-36
Product Brand: CHINO CORPORATION
Features
- This sensor ***s a 0.1 mm thick K-ribbon thermocouple for the detection element and a magnet for mounting to the object to be measured.
- Measurement of parts where magnets adsorb, such as refrigerators and motors
Spec
- Temperature range (deg. C): 0~100
- Tolerance: JIS Class 2
- Wire: K (ribbon thermocouple)
- Connection Conductor: Vinyl Coated Compensation Conductor 2 m (Maximum 60°C)
- Responsiveness: Boiling steam at 100°C at room temperature on an iron plate for about 2 seconds (time to reach 90% of the equilibrium value)
- Material/Finish: Bar Magnet, Phenol Resin, Yellow Steel, Ni Plating
- Country of Origin: Japan
- Securities Code: 816-7771
*This product might require extra fees.
Related product recommendations
You may also be interested in the following products
toner
67-4847-72 HNT General Purpose Pressure Gauge (for Steam/M) AMT3/8-75:1.6MPA 0354-01-0016580
model: 67-4847-72
brand: Daiichi Keiki Mfg
toner

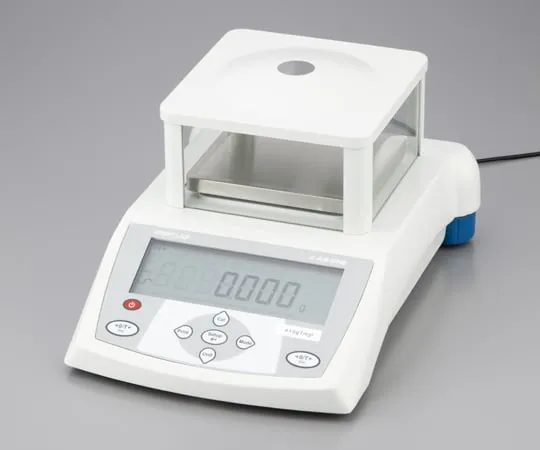

1-9990-01 ［Discontinued］Precision Electronic Balance with Built-In Calibration Weight (Front Lab) 210G1mgi 210g1mgi
model: 1-9990-01
brand: AS ONE Corporation
toner

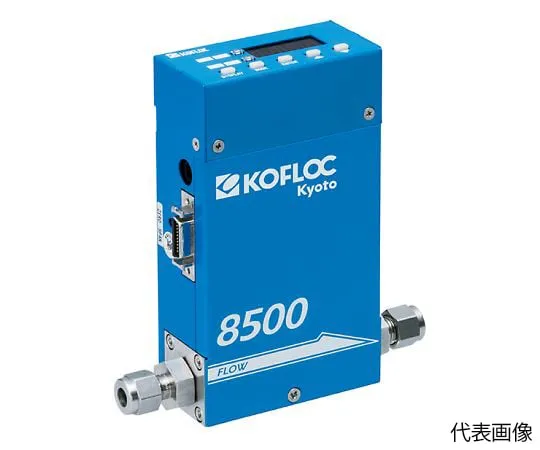

64-4263-71 ［Discontinued］Mass Flow Controller with Indicator MODEL 8500 SERIES 8550MC-O-Rc38-O2-50SLM-1-1-20
