63-4737-99 Vishay VS-KBPC602, Bridge Rectifier, 6A 200V, 4-Pin D 72 VS-KBPC602
Product Description
Product Model: 63-4737-99Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4737-99
Product Brand: Vishay
Features
- Bridge Rectifiers for PCB Mounting, VS-KBPC6 Series, Vishay Semiconductor. Suitable for Printed Circuit Board (PCB) or chassis mounting Compact construction Wide temperature range Wire Lead Structure
Spec
- Quantity：1piece
- Bridge Type : Single Phase
- Peak Average Forward Current : 6A
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Through Hole
- Package Type : D 72
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 137A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.2V
- Peak Reverse Current : 10µA
- Length : 15.75mm
- Width : 15.75mm
- CODE No.:227-8485
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5083-97 200Ω Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns PV36 Series PV36W201C01B00
model: 63-5083-97
brand: Bourns
Electronic/Electrical Parts and Controll Equipments
63-7659-29 Accuride Steel Drawer Slide, 900mm Closed Length, 90kg Load DZ5321-0090-RS-A
model: 63-7659-29
brand: Accuride
Electronic/Electrical Parts and Controll Equipments

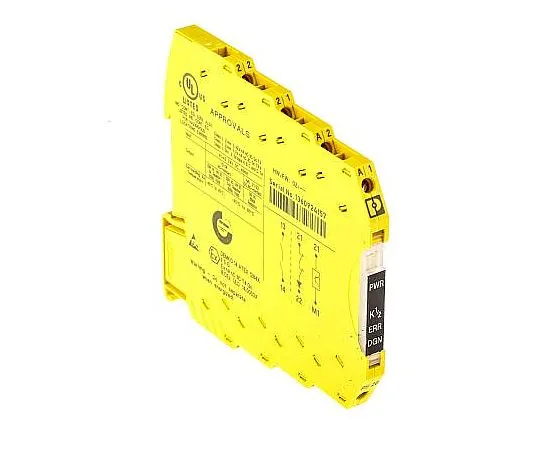

63-5161-65 Phoenix Contact Optocoupler, Max. Forward 24 V, Max. Input 45 mA DIN Rail Mounting Style 2700356
