5-3500-21 Tapping Sieve Shaker Without Soundproof Cover AS200tap50Hz
model:
5-3500-21
category:
laboratoryinstruments
Product Description
Product Model: 5-3500-21 Features Suitable for dry clas […]
Contact Us
Product Details
Product Model: 5-3500-21
Features
- Suitable for dry classification using test sieves with an outer diameter of 200 mm.
- The principle of hand shaking is reproduced by a combination of rotary reciprocating motion and tapping.
- It is easy to operate and can be fitted with a total 420 mm high test sieve (including the receiver).
Spec
- Model number: AS 200 tap (50Hz)
- Without soundproof cover
- Size (mm): 700 x 450 x 650
- Weight (kg): 71
- Suitable sieve outer diameter: φ200mm/203mm
- Number of beds (including the receiver): up to 420mm
- Classification method: rotary reciprocating and tapping
- measurement range : 20 μm to : 25mm (It dep***s on the sample and the test sieve.)
- rotation speed: 280rpm (Fixed)/150 times
- Maximum input: 3kg
- Most significant series: 7/13 (It dep***s on the Dimensions of the test sieve.)
- Maximum sieve Weight: 6kg
- Timer: 1 to 99 minutes
- interface standard equipment
- Safety switch with anti-caught mechanism
- Power supply: AC100V 180W
- *Shipping, carry-in, installation and assembly costs are required separately. Please contact us.
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
65-0569-87 Circulation Unit for Sealed Systems, Type 1000 SBT-1000
model: 65-0569-87
brand: TOKYO RIKAKIKAI CO., LTD.
laboratoryinstruments
laboratoryinstruments

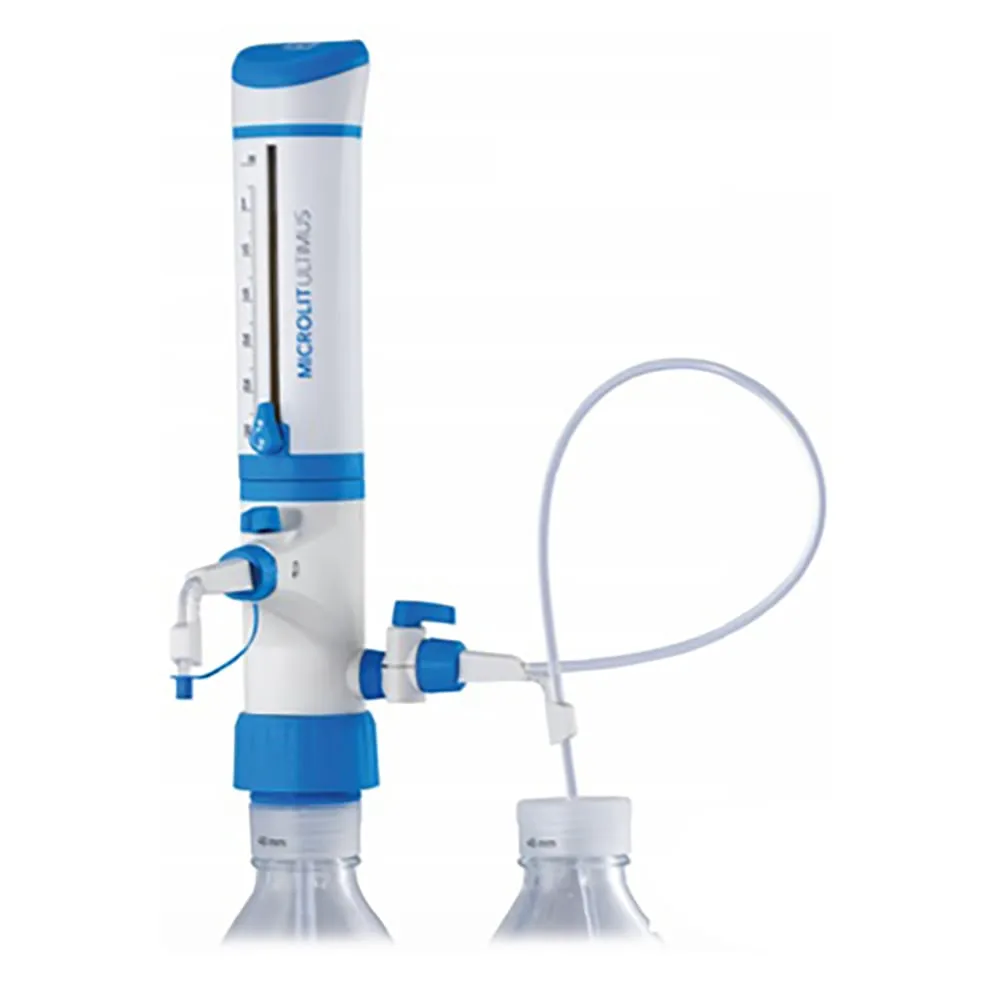

3-5996-01 Bottle Top Dispenser with Suction Nozzle, Foam Drainage Mechanism ULT-2.5
