65-3531-46 Screw Temp Sensor SC Series -50~400°C Screw Diameter: M5 3 φE Type SC-52E-SG1-ANP
Product Description
Product Model: 65-3531-46Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3531-46
Product Brand: ANRITSU METER CO., LTD.
Features
- The SC series is a temperature sensor with a screw fastening structure on the tip.
- [Application] Temperature control and temperature measurement of metal plate by heating using cartridge heater, etc.
Spec
- Material: Screw Fastener Material/Stainless Steel
- Operating temperature range (°C): -50~400
- Tolerance at – 40~150 deg. C (deg. C): ±3.5
- Response Time (sec): 5
- Corresponding Screw Diameter: M5
- Thermocouple Type: E Type
- Cord length (m): 1
- Cord Outer Diameter (φmm): 3
- Coating Material: Glass Fiber with Stainless Steel Shield
- Heat-resistant Temperature (°C): 400
- Plug Shape: Mini Plug
Related product recommendations
You may also be interested in the following products
toner

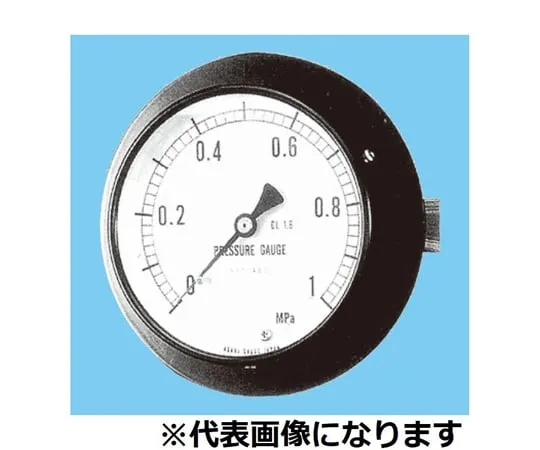

65-3448-78 Bourdon Pressure Gauge Type D Pressure Range (MPA): 0~0.04 101-D640X0.04MPA
model: 65-3448-78
brand: Asahi Gauge Manufacturing
toner

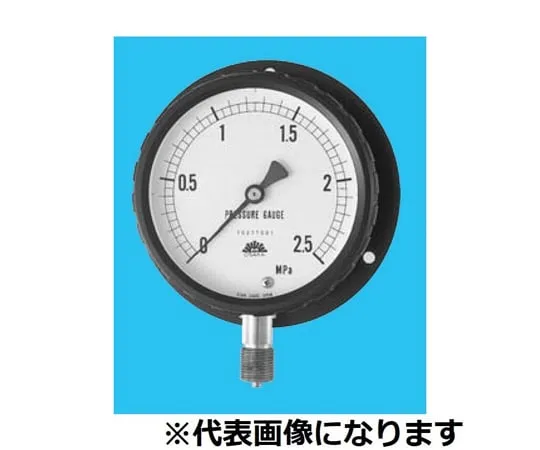

65-3479-32 Closed Pressure Gauge Type B Pressure Range (MPA): 0~0.05 315-B880X0.05MPA
model: 65-3479-32
brand: Asahi Gauge Manufacturing
toner
toner

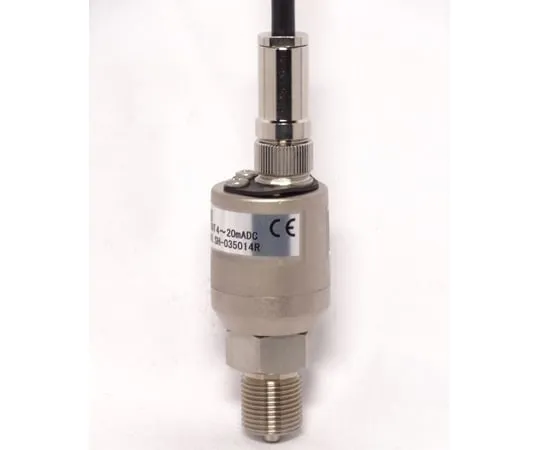

65-4329-29 Pressure Transmitter Analog Output 4~20 mA DC 0.1 MPa KH15-L33
