65-3531-06 Tape Type Multi-Purpose Temperature Sensor ST Series -50~210°C 2 sec. 1000 mm E Type ST-25E-100-TC1-ANP
Product Description
Product Model: 65-3531-06Product Brand: ANRITSU METER C […]
Contact Us
Product Details
Product Model: 65-3531-06
Product Brand: ANRITSU METER CO., LTD.
Features
- The ST Series is an ultra-thin flexible tape-shaped multi-purpose temperature sensor.
- [Application] Temperature measurement in vehicle interior temperature distribution experiments, etc.
- Temperature control and temperature measurement of the substrate during reflow
- Temperature control and temperature measurement during the manufacture of liquid crystal displays (LCD)
- Temperature measurement in the activation process of cells such as lithium-ion batteries
- Temperature measurement during nailing test of lithium-ion battery
- Temperature measurement of professional irons, etc.
Spec
- Operating temperature range (°C): -50~210
- Tolerance at – 40~210 deg. C (deg. C): ±2.5
- Response Time (sec): 2
- Coating Shape: Teflon Glass Coating
- Thermocouple Type: E Type
- Tape length (mm): 1000
- Cord length (m): 1
- Cord Outer Diameter (φmm): 2.3
- Coating Material: Silicon
- Heat-resistant Temperature (°C): 240
- Plug Shape: Mini Plug
Related product recommendations
You may also be interested in the following products
toner

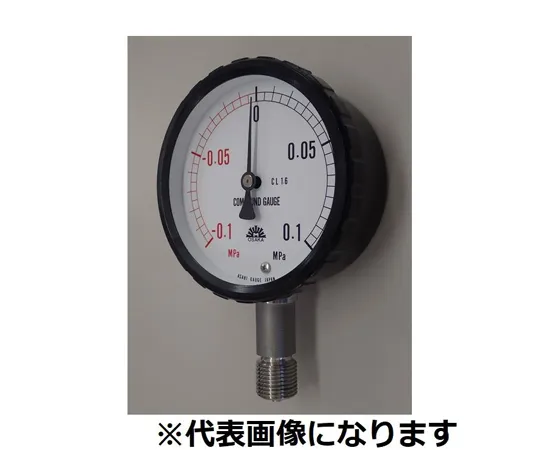

65-3503-84 Sealed Coupled Meter Type A Vibration-Resistant Pressure Range (MPA): -0.1~0.1 315-A450X0.1-0.1MPA-MV
