65-3524-88 Diaphragm Type Vacuum Gauge Flange Type A Pressure Range (MPA)-0.1 841-A-AD-15A-RF-5X-0.1MPA
Product Description
Product Model: 65-3524-88Product Brand: Asahi Gauge Man […]
Contact Us
Product Details
Product Model: 65-3524-88
Product Brand: Asahi Gauge Manufacturing
Features
- Special corrosion-resistant materials such as stainless steel, tantalum and Teflon can be ***d for the diaphragm material.
- You can also select a specification that allows remote measurement by connecting the pressure receiving unit and the indicator with a lead.
- As it is equipped with a zero point adjustment pointer as standard, correction of temperature and other errors can be made easily.
- Flanges are connected by intermediate pipes, so there is no limit on flange size.
Spec
- Mounting Method: Flange Type
- Case Type: A-Type
- Mounting Style Classes: Direct
- Connector: 15A-RF
- Indicator Part Size (φ): 100
- Indicator Part Shape: A-Type
- Wetted Part Material: SUS316
- Diaphragm Material: SUS316L
- Encapsulation: Silicone oil
- Silicon oil pressure receiving part permissible temperature: -40~200°C(Negative pressure and coupling ...-5~ 45°C)
- Pressure range (MPA): -0.1
Related product recommendations
You may also be interested in the following products
toner

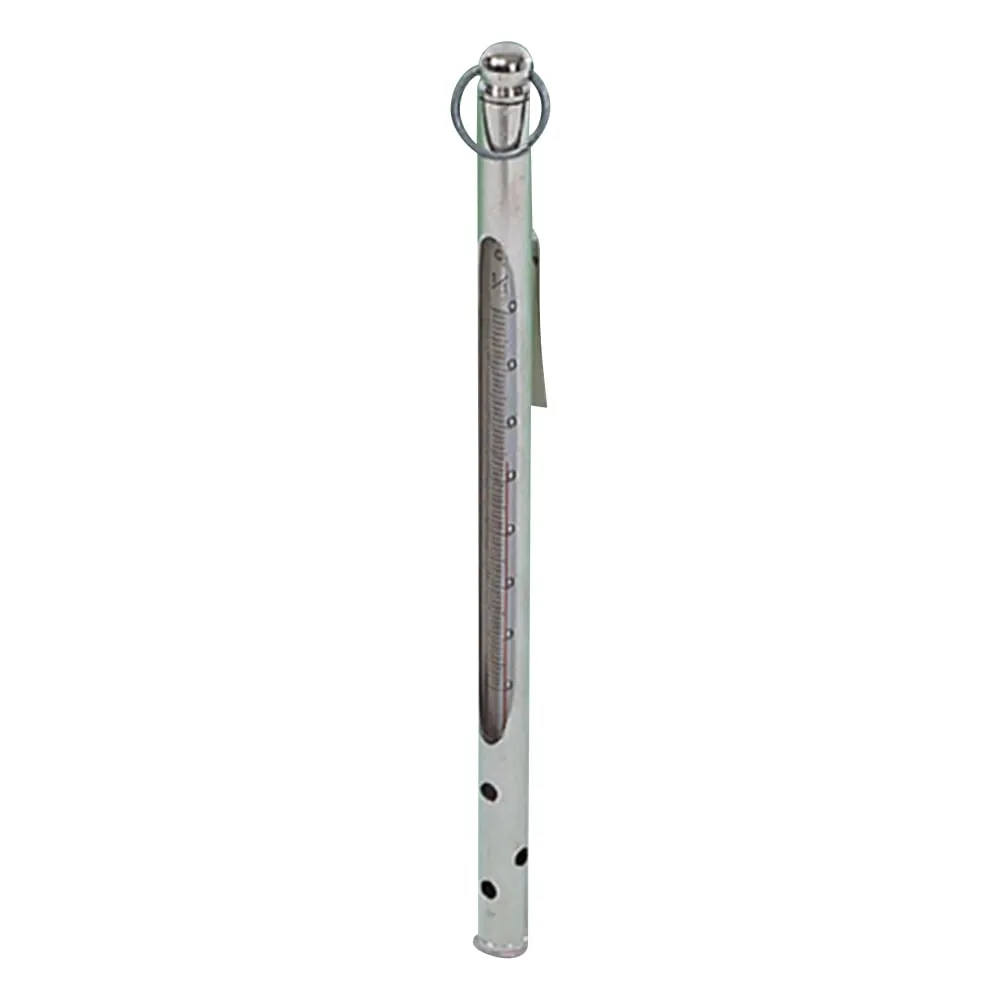

1-606-01 Stick Thermometer in Metal Case -20 - 50℃ 1710-00
model: 1-606-01
brand: Sato Keiryoki Mfg. Co., Ltd.
toner

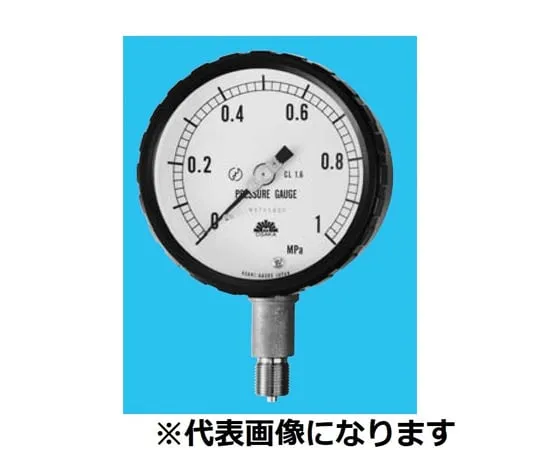

65-3476-97 Sealed Pressure Gauge A-Type Pressure Range (MPA): 0~0.05 325-A880X0.05MPA
model: 65-3476-97
brand: Asahi Gauge Manufacturing
toner
63-3251-22 (1/4"Hex) Dial Type Torque Screwdriver (Corresponds To Low Torque) EA723PB-15
model: 63-3251-22
brand: ESCO Company Ltd.
toner

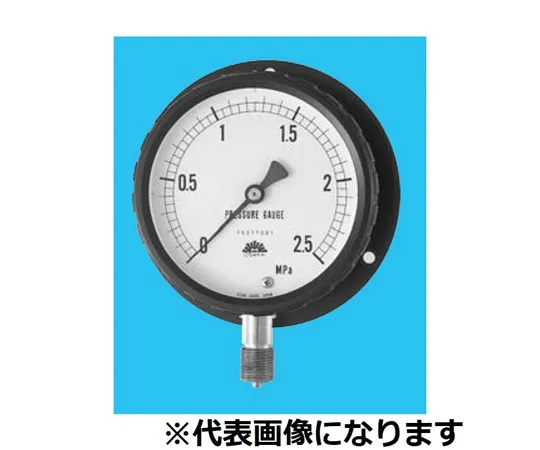

65-3517-40 Sealed Pressure Gauge Type B Vibration-Resistant Pressure Range (MPA): 0~0.05 315-B881X0.05MPA-MV
