1-6124-11-90 【Global Model】 Digital Desktop Temperature Controller (220 VAC plug type: F) TMAK-550K-F
Product Description
Product Model: 1-6124-11-90Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-6124-11-90
Product Brand: AS ONE Corporation
Features
- In addition to normal control, an indep***ent alarm cutoff device is installed to ensure safety.
- Uses a white LCD with excellent visibility.
- A terminal stopper output terminal is provided.
- Compact design does not take up space.
- In addition to ON-OFF control, PID control (effective for suppressing overshoot and hunting) is also possible, and the connection capacity can be up to 7 A (220 VAC).
Spec
- Setting range (°C): 0~500
- Sensor Type: K Thermocouple
- Temperature control system: PID control or ON/OFF control
- Temperature display accuracy: ±0.3% (FS) or ±3 deg. C, whichever is greater.
- Excessive temperature rise prevention setting: Absolute value upper limit setting (setting to set a specified value as a forced cut-off temperature) or deviation upper limit setting (setting to set a deviation value from the control temperature as a specified forced cut-off temperature)
- Alarm operation: Alarm operation retention (Automatic recovery does not occur after relay interruption.)
- Output Terminal: M4 Screw Terminal
- Connection Capacity: MAX7A (Resistive Load)
- Size: 138 x 159 x 94 mm
- Power: 220 VAC 50/60Hz
- K Thermocouple Specifications
- Stainless Steel Sheath Type (SUS304)
- Size: Φ3.2 mm x 200 mm
- Cable length: 1.9 m
- This part is sold for the maintenance of the product you have already purchased.
- *This product cannot be ***d for any other purpose.
- *We do not handle individual inquiries such as parts specifications.
- *Products repaired with purchased parts are not covered by the warranty.
- However, we guarantee the initial failure of purchased parts.
Related product recommendations
You may also be interested in the following products
toner
65-3621-90 GRK Glycerin Containing Coupled Meter B Type φ100 G3/8 -0.1~0.1MPA G-BU38-1000.1-0.1MPA
model: 65-3621-90
brand: Daiichi Keiki Mfg
toner

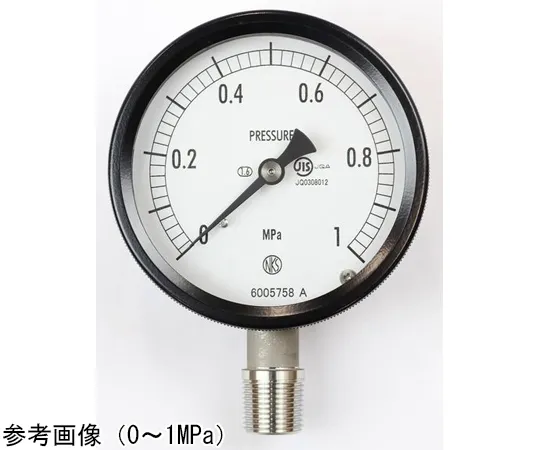

65-4295-92 Sealed Pressure Gauge (75Φ) Vertical A Frame 0.1 MPa BC10-183
