64-9641-24 Smart Bibro Piezo Type High Grade Set VM-4424H
Product Description
Product Model: 64-9641-24Product Brand: IMV Features Th […]
Contact Us
Product Details
Product Model: 64-9641-24
Product Brand: IMV
Features
- This is an accurate and easy-to-*** vibrometer.
- It is highly functional and compact in size compared to previous models!
- Accelerations, speeds and displacements can be displayed simultaneously on the touch panel LCD for outstanding usability.
Spec
- Sensors ***d: Piezoelectric acceleration/pickup
- Measurement mode: OA measurement
- Measurements: acceleration, velocity, displacement, bearing mode, H function
- Maximum measurement range: acceleration/300 m/s2 (RMS, EQP, PEAK), velocity/1000 mm/s (RMS, EQP, PEAK, displacement/10 mm-p (EQP, PEAK), bearing mode, H function 3 m/s2 (RMS, EQP, PEAK)
- Measuring frequencies: acceleration/10 ~ 10,000 Hz, velocity/10 ~ 1000 Hz, displacement/10 ~ 150 Hz, bearing/1 kHz to 10 kHz, H function/3 Hz to 1 kHz (enveloped by 2 ~ 15 kHz BPF)
- AC output: 0 to +/- 1 V (load 10 kohm or more)
- DC output: 0 to + 1 V (over 10 kohm load)
- Display languages: Japanese, English
- Power supply: 2 AA batteries (continuous 20 hours or more)
- Mass: About 230 g (including battery)
- Dimensions: 74 (W) x 32.5 (D) x 154 (H) mm
- Composition: 1 set of VM -4424 H Smart Bibro piezoelectric type high-grade
Related product recommendations
You may also be interested in the following products
toner

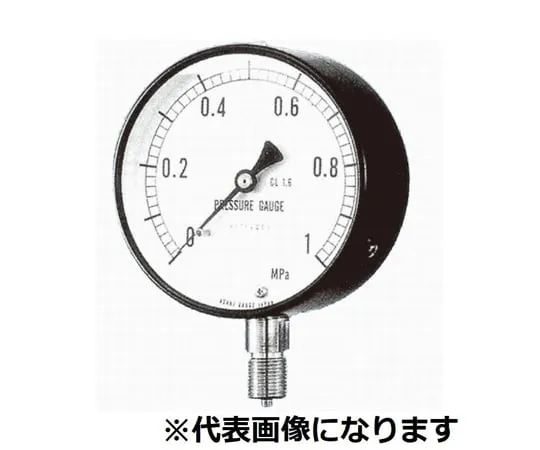

65-3441-17 Bourdon Pressure Gauge Type A Pressure Range (MPA): 0~0.04 101-A340X0.04MPA
model: 65-3441-17
brand: Asahi Gauge Manufacturing
toner

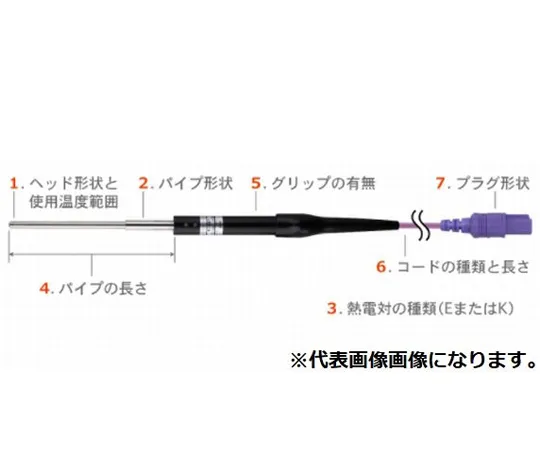

65-3541-81 Temperature Sensor for Micro Surface CS Series, Tip □2 x 10 mm/-50~400°, Pipe Shape: 90°, K Type, 50 mm CS-33K-005-1-TC1-ANP
model: 65-3541-81
brand: ANRITSU METER CO., LTD.
toner

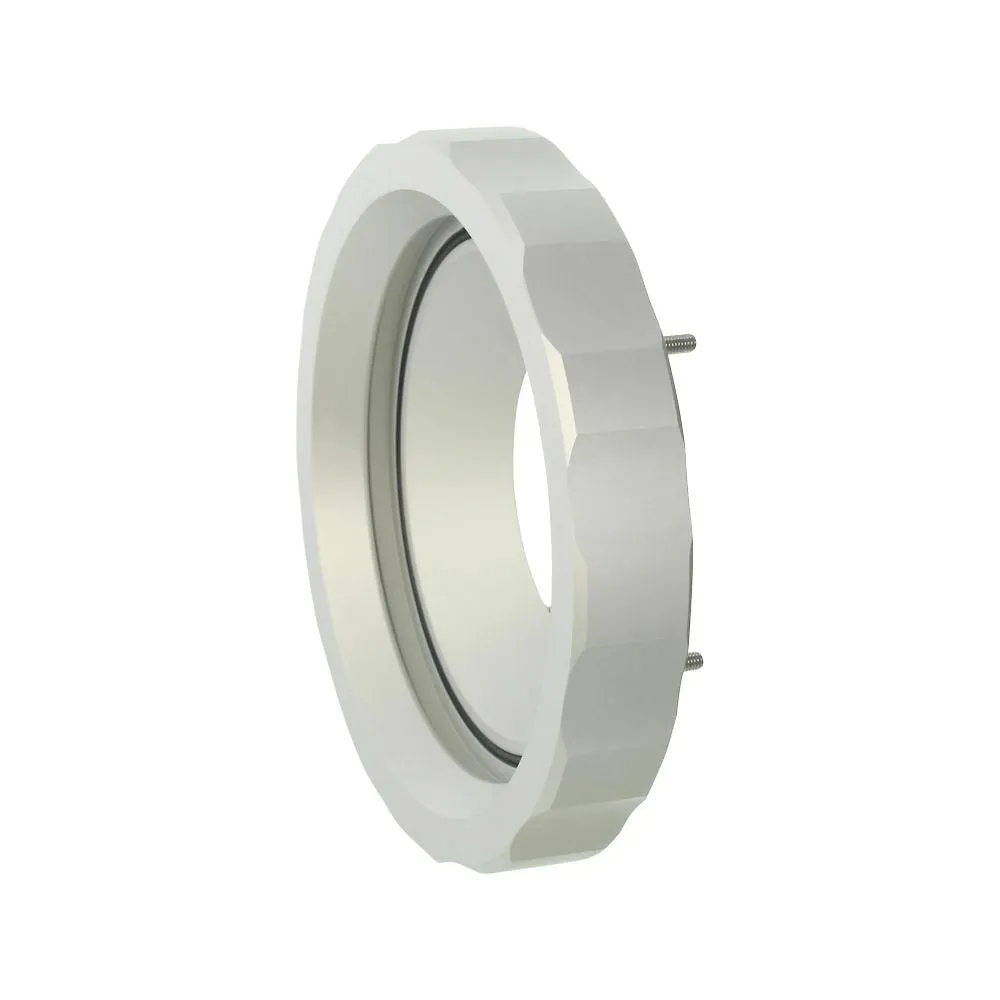

64-3880-61 Clip Holder for HV-500F/R 080130-08750
