3-5263-01 Integrating Flow Meter NW05-PTN
Product Description
Product Model: 3-5263-01Product Brand: Aichi Tokei Denk […]
Contact Us
Product Details
Product Model: 3-5263-01
Product Brand: Aichi Tokei Denki Co., Ltd.
Features
- Built-in lithium battery requires no power.
- The instruction section can be rotated in an easy-to-read direction.
- Two types of display can be switched: total accumulation and trip accumulation.
Spec
- Model number: NW05-PTN
- Flow rate range (L/min): 0.3 - 3
- Connection: R1/2
- Target fluid: Water (*Please confirm connecting part main materials to select correspondence to various liquid. )
- Maximum operating pressure: 1MPa (liquid temperature at 20℃)
- Liquid viscosity range: 0.5 - 1.5mPa・s
- Liquid temperature range: 0 to +60℃
- Power supply: Lithium battery (battery life is approximately 4 years/battery replacement unavailable)
- Waterproof performance: IPX4 (indoor specification)
- RoHS directive correspondence good
- CE marking good
- Size: 80 x 87 x 52mm
- Weight: Approx 280g
- Material: Case/PP, Impeller/POM, Pivot/PA, O-ring/FKM
Related product recommendations
You may also be interested in the following products
toner

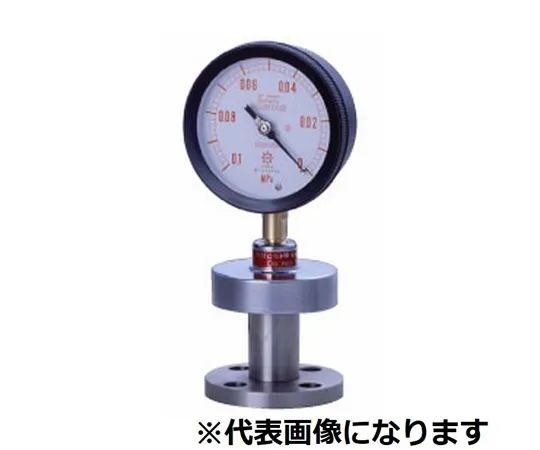

65-3630-22 Diaphragm Type Pressure Gauge Flange Type Diaphragm SUS316L Sealed Liquid Silicon A Type φ100 76φ 0~0.4 PK-5AU100JIS10K-15ARF0.4MPAS25CSUS304
model: 65-3630-22
brand: Daiichi Keiki Mfg
toner
65-3535-23 ［Out of stock］Temperature Sensor for Moving/Rotating Surface U Series with ISO Document -50~250°C 29 x 60 mm E Type U-211E-01-D0-1-TC1-ASP
model: 65-3535-23
brand: ANRITSU METER CO., LTD.
toner

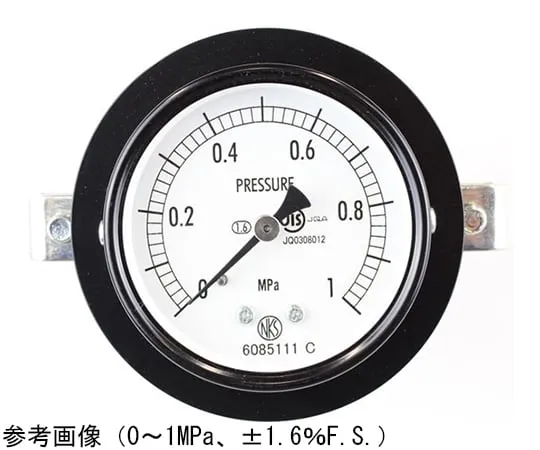

65-4270-66-20 Normal Pressure Gauge (Φ60) Embedded D Frame (Mounting Bracket) with 0.16 MPa Inspection Certificate AA15-121
model: 65-4270-66-20
brand: NAGANO KEIKI Co., Ltd.
toner

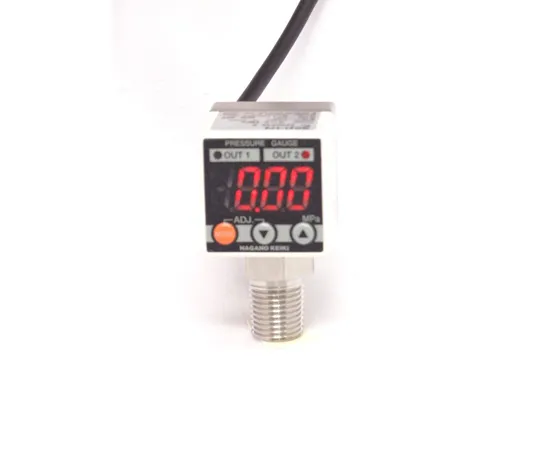

65-4314-33 Small Digital Pressure Gauge Analog Output 1~5 V DC -100~100 kPa GC31-174
