63-4663-95 D-Sub Connector Female 9-Pole 09670094754
Product Description
Product Model: 63-4663-95Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-4663-95
Product Brand: HARTING
Features
- NFC 93425 - Type HE 5 - DIN41652 MIL-C-24308
- Straight Sub-D in-line output connector for soldering to substrate
- Straight D-Sub male/female through hole substrate mounting connector product.
- Tin Plated Metal Case Performance Level 3 Male Connector with Machining Contact Earth Blade
Spec
- Quantity: 1 piece
- Number of contacts: 9
- Male and female: female
- Body orientation: Straight
- Mounting type: through hole
- pitch: 2.74 mm
- Rated current: 7.5 A
- Housing material: Steel
- Length: 31.2 mm
- Depth: 12.5 mm
- Operating temperature Min: -55 degrees C
- RoHS compliance status: Compliance
- Securities Code: 117 -4196
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-6599-78 RS PRO Cable Clip Grey Nail PE Rectangular Cable Clip 233-641
model: 63-6599-78
brand: RS PRO
Electronic/Electrical Parts and Controll Equipments

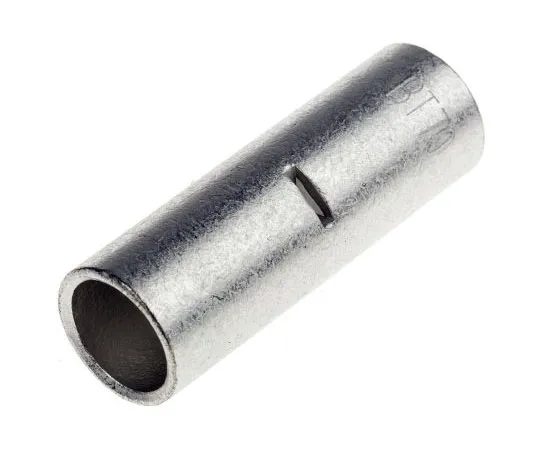

63-8038-50 RS PRO Butt Wire Splice Connector, Tin Plated 70 mm² 841-7692
