63-4668-61 RS PRO Multimeter Current Clamp Adapter AC, 400A ac, 29mm 123-3223
Product Description
Product Model: 63-4668-61Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4668-61
Product Brand: RS PRO
Features
- Carrying Case and User Manual • RS Pro ICA 31 Current Transducer • RS Pro ICA 31 AC current transducer is a rugged, low-cost unit with high performance specifications.
- When ***d in the mV ac range of a digital multimeter, it can measure currents up to 400 A ac.
- Features and benefits: Current capacity: 400 A acBasic accuracy: 1.9% Non-intrusive conversionConductor with a maximum diameter of 29 mmImpact resistance (can withstand a 4 foot drop) Coiled cable output plugergonomically designed jaw and triggerDetection type: Detection by current transformer Designed to comply with IEC61010-1, CAT II 600 V/CAT III 300 V
Spec
- Adapter Type:AC
- Maximum AC Current:400A ac
- Best Accuracy:±1.9% + 0.5 A
- Resolution:1 mV/A
- Maximum Conductor Size:29mm
- Safety Category:CAT II 600 V
- Output Type:Current, Voltage
- Connector Type:Test Lead
- Battery Type:9V Alkaline
- Maximum Operating Temperature:+50°C
- Minimum Operating Temperature:0°C
- Safety Category Level:CAT II
- CODE No.:123-3223
Related product recommendations
You may also be interested in the following products
toner
1-623-01-57 Accurate Thermo-hygrometerin with Chinese Calibration Certificate 7542-00
model: 1-623-01-57
brand: AS ONE Corporation
toner

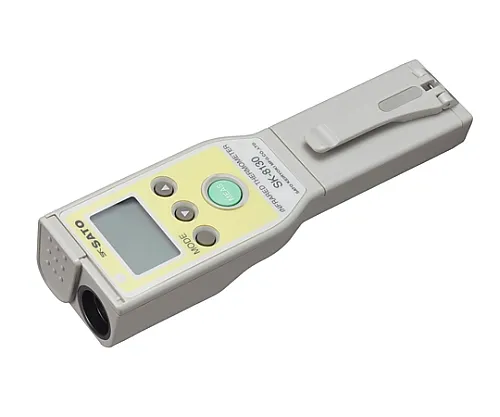

61-9438-82 ［Discontinued］Radiation Thermometer Circle Thermo Calibration Report And Calibration Certificate SK-8130
model: 61-9438-82
brand: Sato Keiryoki Mfg. Co., Ltd.
toner
65-3459-35 Sealed Coupled Meter Type A Vibration-Resistant Pressure Range (MPA): -0.1~0.1 315-A631X0.1-0.1MPA-MV
model: 65-3459-35
brand: Asahi Gauge Manufacturing
toner

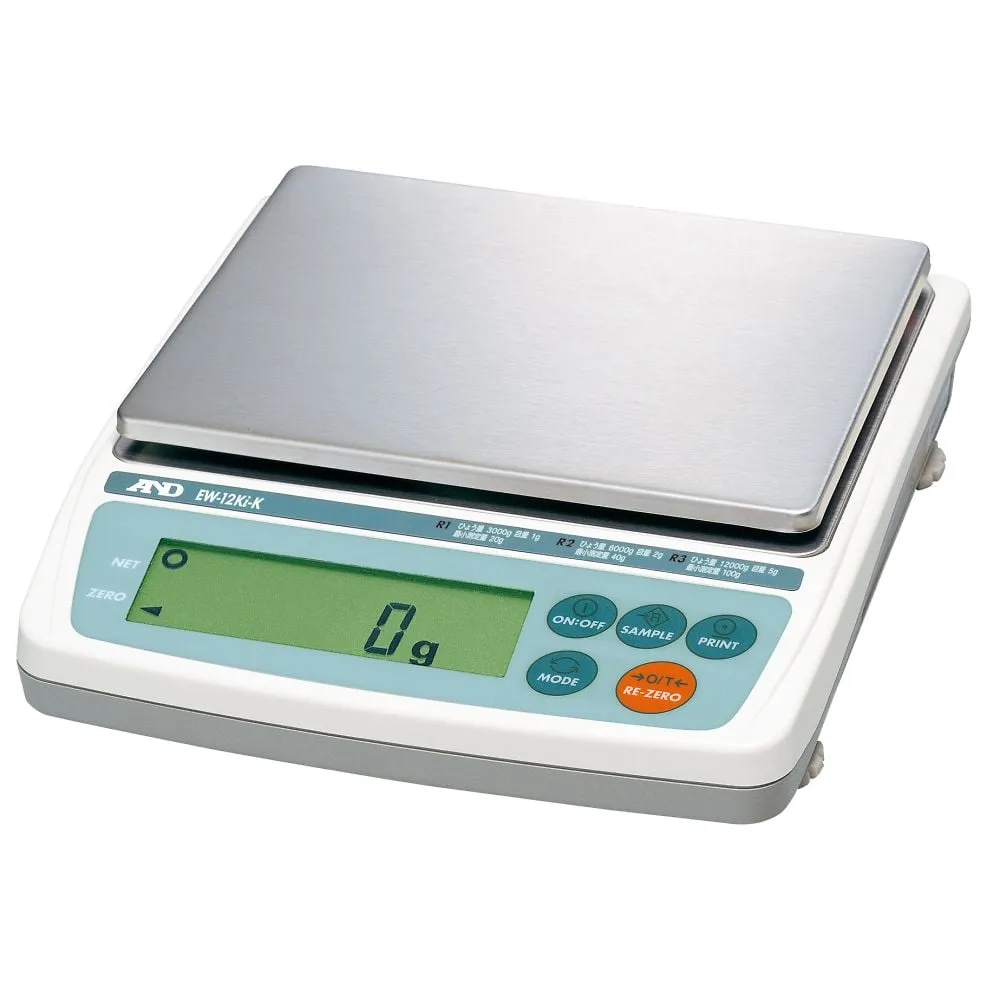

61-4673-68 Personal Electronic Balance with Test EW-12Ki-K EW-12Ki-K
