63-3249-59 Radiation Thermometer (Lightweight Type) EA701XC-1A
Product Description
Product Model: 63-3249-59Product Brand: ESCO Company Lt […]
Contact Us
Product Details
Product Model: 63-3249-59
Product Brand: ESCO Company Ltd.
Features
- Equipped with auto power off function to reduce battery drain.
- For temperature measurement of equipment such as IC boards, food and air conditioning equipment.
- Simply pull the measuring lever.
- Can measure up to 330°C. Temperature indication 0.1°C unit.
Spec
- With laser marker (1Point )
- Infrared rays sensor
- Measurement range …-50～+330℃
- Resolution …0.1℃
- Sampling hour …1time/s
- Measurement accuracy …±4℃(-50～0℃)、 ±2%rdg or ±2℃ bigger one(others )
- Emissivity …0.95Fixed
- Measurement area …12：1
- Measurement wavelength …8～14μm
- Function …Data hold 、 Backlight 、 Laser marker (With PSC Mark 、JIS C6802(2011) Laser class 2)、 Auto power off (10Second )
- Usable temperature and humidity …0～+50℃、10～95%RH (No condensation)
- Preservation temperature and humidity …-20～+60℃、80%RH or less (No condensation)
- Power supply …9V Square battery ×1 pc (With )
- Size …36(W)×88.5(D)×134(H)mm
- Weight …About 145g(Including batteries )
- Proofreading …Possible
- Compact thermometer with laser marker function which is for surface temperature measurement
- It can measure temperatures up to 330°C. Temperature indication: 0.1°C unit
- Just pull the measurement lever for easy operation.For temperature measurement for equipment such as IC boards food and air conditioning equipment.
Related product recommendations
You may also be interested in the following products
toner
toner

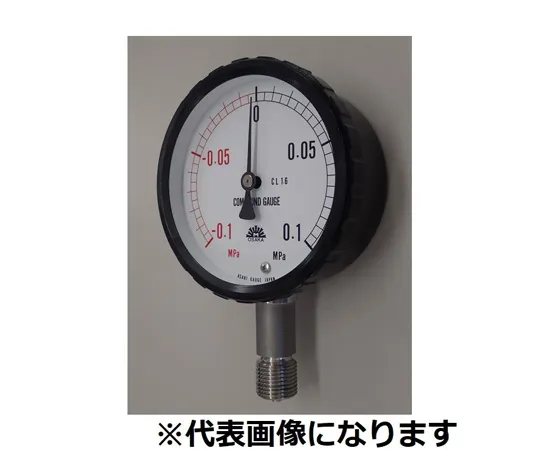

65-3493-30 Sealed Coupled Meter A-Type Heat-Resistant Vibration-Resistant Pressure Range (MPA): -0.1~0.1 325-A380X0.1-0.1MPA-HV
