62-3149-63 Bar Type Load Cell LC4212-K300
Product Description
Product Model: 62-3149-63Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3149-63
Product Brand: A&D
Features
- The platform scale is completed just by placing the loading platform on the bar type load cell.
- Unique, simple specification (with four corners adjusted).
- Compression type.
- Temperature effect of 0 point: 0.04%ofR.O./10°C
- Temperature effect of output: 0.014%ofLoad/10°CType.
- 900×MAX2000mm (variable)
- Dustproof/Waterproof: IP54
Spec
- External dimensions: (W) 107 x (D) 380 x (H) 820 mm
- rating capacity: 3 kN (305.9 kg)
- rating Output: 1.0197 mV/V + 15% - 0%
- Allowable overload: 200% ofR.C., Limit overload: 400% ofR.C.
- Overall error: 0.015% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- 0 Balance: 25 ± 10% of R.O.
- Resistance between input terminals: approx. 200 Ω
- Resistance between output terminals: 175 ± 5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 40 °C
Related product recommendations
You may also be interested in the following products
toner

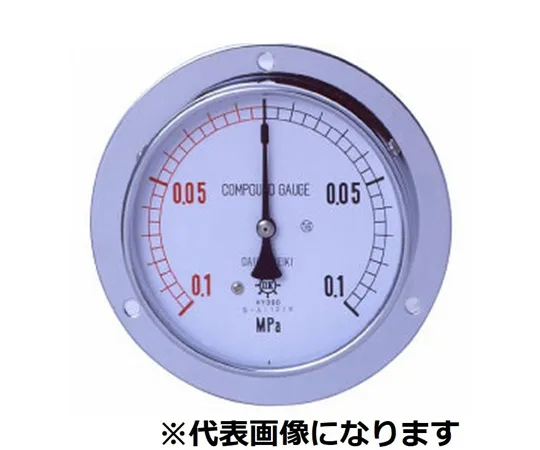

65-3612-30 IPT General Coupling Meter D Type φ75 G3/8 -0.1~0.1MPA DU38-750.1-0.1MPA
