62-3148-77 All Stainless Steel Sealed Structure Beam Type Load Cell LC4221-K010
Product Description
Product Model: 62-3148-77Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3148-77
Product Brand: A&D
Features
- All Stainless Steel Sealed Structure Beam Type Load Cell for Platform Scale and Tank
- Made of All Stainless Steel, Small and Lightweight. Achieves high reliability even in harsh environments.
- For both tension and compression.
- Temperature effect at 0 point: 0.07%ofR.O./10°C. Temperature effect at output: 0.02%ofLoad/10°CType. Cable thickness/length: φ6/5m Dustproof/Waterproof: IP67
Spec
- External dimensions: (W) 48 x (D) 48 x (H) 133 mm
- rating, capacity: 100 N (10.20 kg)
- rating Output: 2.0394 mV/V ± 0.2%
- Allowable overload: 200% ofR.C., Limit overload: 200% ofR.C.
- Overall error: 0.05% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 15 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: approx. 400 Ω
- Resistance between output terminals: 350 ± 3.5 Ω
- insulation Resistance: 5000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 60 °C
Related product recommendations
You may also be interested in the following products
toner

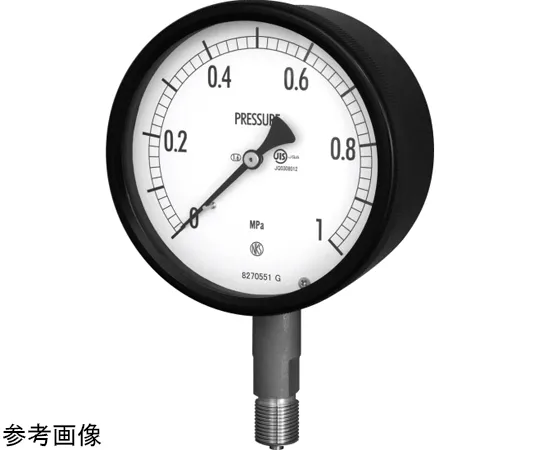

69-3923-28 φ100 Pressure Meter JIS Compatible Sealed Pressure Meter BE10 Corrosion-Resistant SUS Made G1/2B A Frame BE10-143-0.1-0.16MPA
model: 69-3923-28
brand: NAGANO KEIKI Co., Ltd.
toner

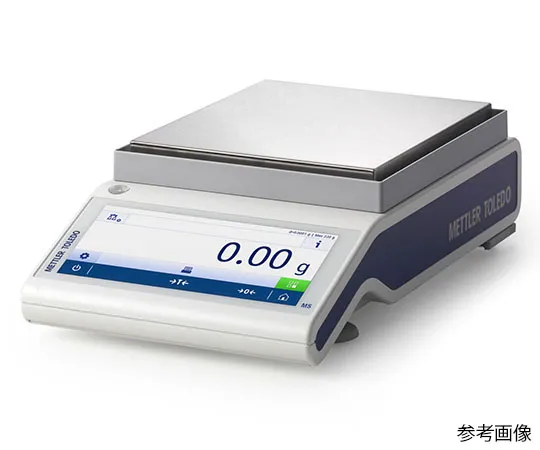

63-6334-34-20 ［Discontinued］Top Plate Balance 1620g with Calibration Certificate MS1602TS00
model: 63-6334-34-20
brand: Mettler-Toledo International Inc.
toner

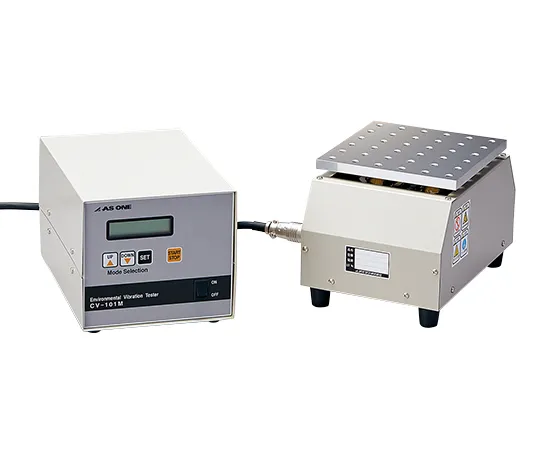

1-7593-11 ［Discontinued］Desktop Vibration Testing Machine (Comply with JIS) CV-101M
model: 1-7593-11
brand: AS ONE Corporation
toner

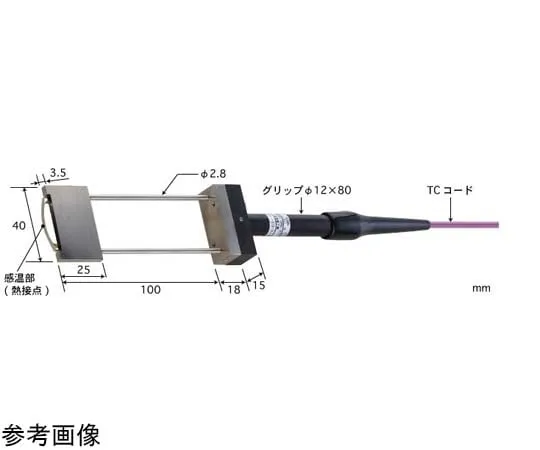

65-3528-29 Thin/Narrow Groove Temperature Sensor TH Series -50~400°C Type E Head Shape: Type 11 TH-11E-010-1-TC1-ASP
