62-3147-94 Sealed Structure Type Load Cell C2F1-1
Product Description
Product Model: 62-3147-94Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3147-94
Product Brand: A&D
Features
- Sealed structure type load cell for hopper/tank
- Tank/hopper type.
- Fully sealed construction type with a variety of different capacities.
- Small to large systems are possible.
- Dustproof and waterproof IP67.
- Compression type.
- Temperature effect at 0 point: 0.05%ofR.O./10°C. Temperature effect at output: 0.1%ofLoad/10°CType. Cable thickness/length: φ9.7/3 m
Spec
- External dimensions: (W) 105 x (D) 120 x (H) 98 mm
- rating capacity: 10 kN (1.020 t)
- rating Output: 2.0394 mV/V ± 0.4%
- Allowable overload: 150% ofR.C., Limit overload: 250% ofR.C.
- Overall error: 0.3% ofR.O.
- Recomm***ed Application Voltage: DC5 to 12 V, Maximum Application Voltage: DC 20 V
- Zero balance: ± 1% of R.O.
- Resistance between input terminals: 350 ± 3.5 Ω
- Resistance between output terminals: 350 ± 5 Ω
- insulation Resistance: 1000 MΩ/DC 50 V
- Temperature coverage: -10 °C to 75 °C
Related product recommendations
You may also be interested in the following products
toner
toner

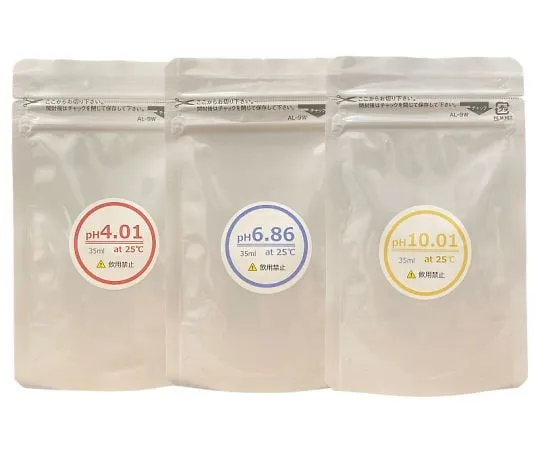

64-8003-76 pH Standard Solution 3-Piece Set ( 35 mL ) pH 4.01/6.86/10.01 1 Each bag
model: 64-8003-76
brand: Sato Keiryoki Mfg. Co., Ltd.
toner

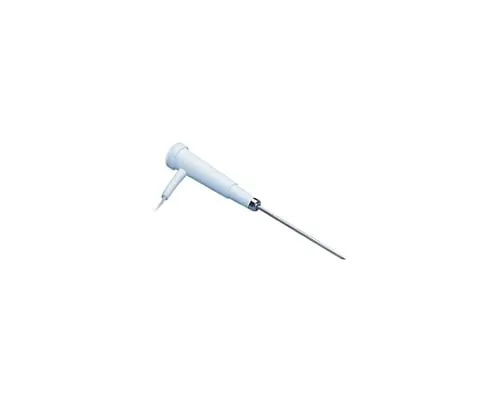

61-0116-72 Thermistor Sensor (Gas Temperature Measurement) HI 765A HI765A
