65-9010-50 ［Discontinued］High Flow Coupler Φ9.53 mm Socket HFL-2S-BI38
Product Description
Product Model: 65-9010-50Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9010-50
Product Brand: NITTO KOHKI CO., LTD.
Features
- For low pressure.
- High flow Coupler and wedge type pipe joint are integrated. Achieves efficiency of piping work.
- Easy connection with stainless steel pipes.
- Can be connected to various tubes just by inserting the insert into the tube.
Spec
- Other Pipe Size (mm): Φ9.53
- Mass (g): 105
- L(mm):56.5
- A(mm):17
- ΦD(mm):26
- ΦB(mm):9.53
- H (mm): Hex 20.64 (13/16)
- T (mm): Hex 17.46 (11/16)
- Valve Structure: Double Road Opening/Closing Type
- Applicable fluids: water, coolant for temperature control
- Body Material: Stainless Steel
- Maximum Working Pressure (MPa{kgf/cm2}): 1.0{10}
- Pressure Capacity (MPa{kgf/cm2}): 1.5{15}
- Type: Socket
Related product recommendations
You may also be interested in the following products
automaticdiluter
automaticdiluter
64-3829-25 FCD/SUS Lift safety Valve Sealed, Flange, 1.5 MPa AL-4-65AX0.1MPa
model: 64-3829-25
brand: Yoshitake Inc.
automaticdiluter
automaticdiluter

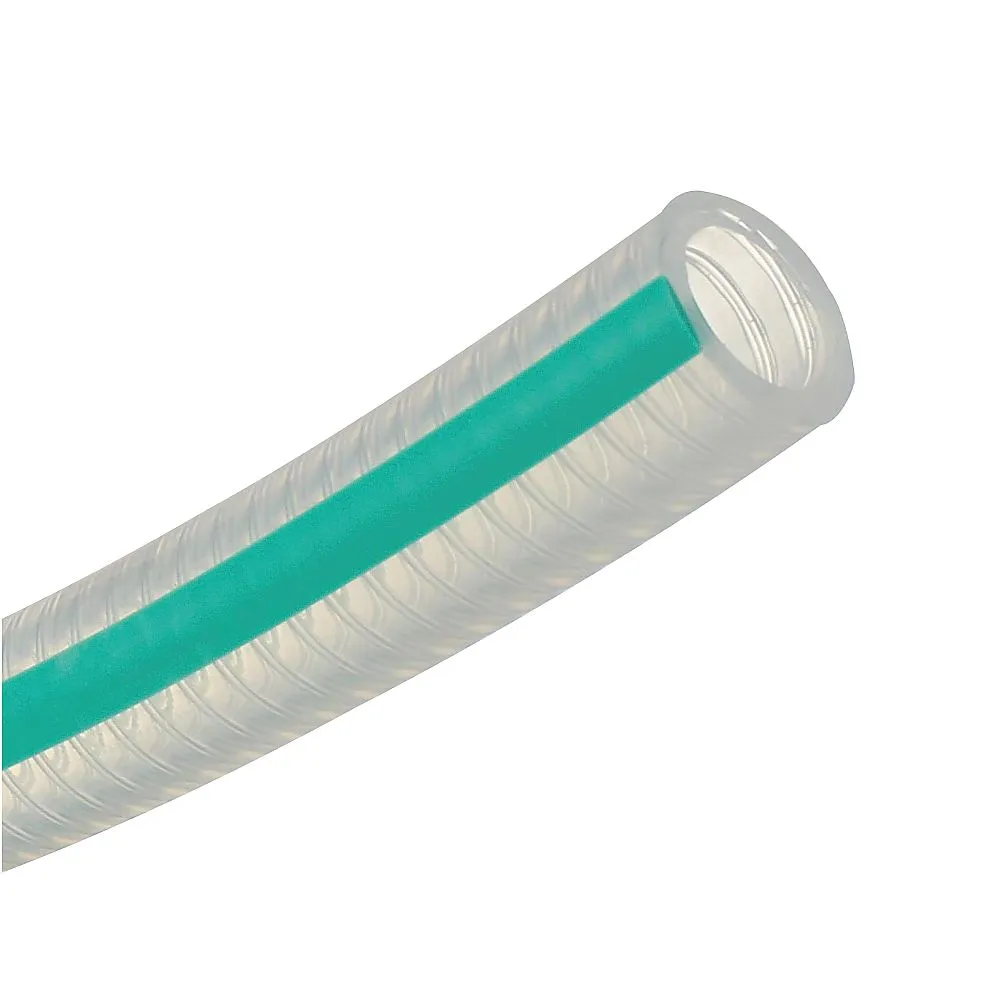

65-0865-37 Toyo Silicone Hose For Filling Machine, Food Machine, Cooling Device, Heat Resistant Piping TSIP-15-1
