65-9007-33 ［Discontinued］PCV Coupler Rc3/8 180 g PCV950-3BRASSFKM
Product Description
Product Model: 65-9007-33Product Brand: NITTO KOHKI CO. […]
Contact Us
Product Details
Product Model: 65-9007-33
Product Brand: NITTO KOHKI CO., LTD.
Features
- For inert gas and vacuum.
- Can be directly connected to copper straight pipes, eliminating the need for welding and flaring.
- Supports a vacuum degree of 1.3 x 10-1 Pa for *** in pressure tests, vacuum drawing, and refrigerant gas filling. (When connected)
- One lever operation completes chucking and sealing of the pipe at the same time. In addition, the double sealing structure of the *** face and outer surface of the pipe provides excellent airtightness and vacuum resistance.
Spec
- Pipe Outer Diameter (Cu) (mm): -
- Pipe Outer Diameter (Cu) (inch): 3/8
- Mating Side Mounting Screw Size: Rc3/8
- Mass (g): 180
- L(mm):63
- ΦD(mm):24.8
- H (mm): Hex 19
- ΦB(mm):4.6
- E(mm):35.5
- T:R3/8
- Pipe insertion length l (mm): 20.5
- Required pipe thickness t (mm): 0.8 or more
- Applicable Fluid: Inert Gas Vacuum, Air, Gas
- Body Material: Brass
- Maximum Working Pressure (MPa{kgf/cm2}): 4.5{46}
- Pressure Capacity (MPa{kgf/cm2}): 5.0{51}
- Seal Material: Fluororubber
- display symbols: FKM
- Operating Temperature Range (°C): -20 to +180
- Remarks: Standard Material
- Recomm***ed maximum tightening torque (N · m{kgf · cm}): 12{122}
- Minimum cross-sectional area (mm2): 16.6
Related product recommendations
You may also be interested in the following products
automaticdiluter
61-8492-92 Union Fitting Connection Port 1/4" Tube ・ 1/4" MNPT Screw Gripper Type 751-C4-4GN-1
model: 61-8492-92
brand: Savillex Corporation
automaticdiluter

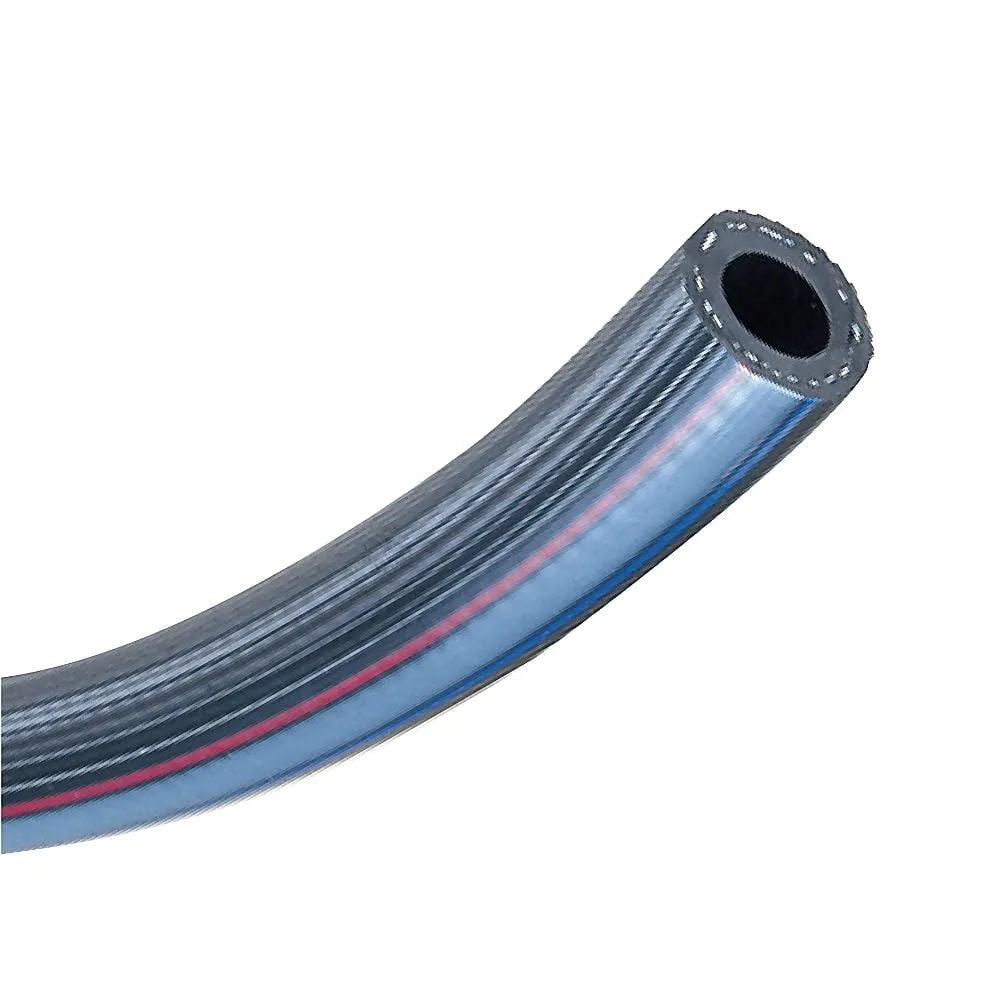

65-0870-56 Arrow Hose for Factory Equipment Air Piping A-8B-1
