63-4636-34 RS PRO 6VA 2 Output Chassis Mounting Transformer, 6V ac 503-994
Product Description
Product Model: 63-4636-34Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4636-34
Product Brand: RS PRO
Features
- Optimum transformer coating: 6 VA = < 503-912') 503-912/, 12 and 20 VA = < 504-004') 504-004/, 50, 75 and 100 VA = < 503-928') 503-928/
- Chassis mounting clamp/frame structure Primary side 115/230 Vac transformer
- Double section bobbin structure Fully covered bobbin Varnished throughout 2 holes Fixed lap over clamp, 6 VA→50 VA Multi-hole frame fixed 100 VA Solder tag End coating with optional termination 100% Electrical performance test/flash tested BS3535 and EN 60 742 verified
Spec
- Primary Voltage Rating:115V ac, 230V ac
- Secondary Voltage Rating:6V ac
- Power Rating:6VA
- Number of Outputs:2
- Mounting Type:Clamp Mount
- Length:45mm
- Width:40mm
- Depth:37mm
- Dimensions:45 x 40 x 37mm
- Fixing Hole Diameter:4 x 5.5mm
- Weight:200g
- Minimum Operating Frequency:50Hz
- Maximum Operating Frequency:60Hz
- CODE No.:503-994
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-4706-80 ROHM BA33BC0FP-E2, LDO Regulator, 1A, 3.3 V, ±2% 3-Pin, DPAK BA33BC0FP-E2
model: 63-4706-80
brand: ROHM
Electronic/Electrical Parts and Controll Equipments

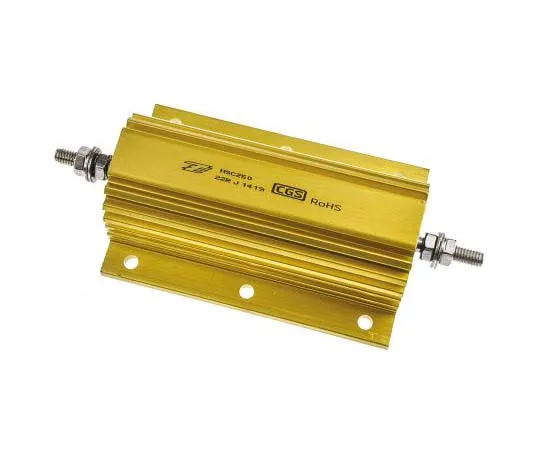

63-7758-79 TE Connectivity HSC250 Series Aluminium Ho***d Solder Lug Wire Wound Panel Mount Resistor, 22Ω ±5% 250W HSC25022RJ
